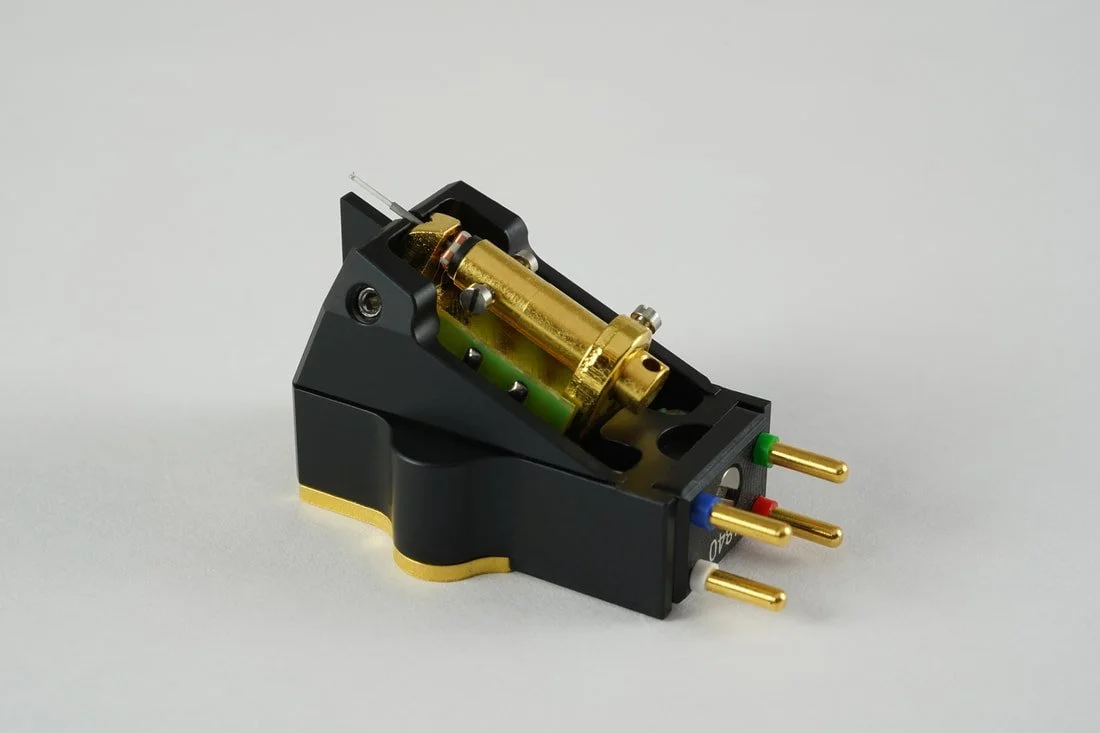

EMT JSD Pure Black
On Demo !
The body of the JSD Pure is fitted with a high-densitiy layer that reduces unwanted resonance behaviour between cartridge body and tonearm.
The most modern generator features a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
On Demo !
The body of the JSD Pure is fitted with a high-densitiy layer that reduces unwanted resonance behaviour between cartridge body and tonearm.
The most modern generator features a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
On Demo !
The body of the JSD Pure is fitted with a high-densitiy layer that reduces unwanted resonance behaviour between cartridge body and tonearm.
The most modern generator features a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
-
Diamond: MR HP
Cantilever: Sapphire
Transducer: MC Stereo
Coil Standard: Pure Copper
Coil Option AG: Pure Silver
Magnet: AlNiCo, gold-plated
Body: Aluminium, black anodized
Connection: 1/2" – 4pin
Vertical Tracking Angle: 23°
Weight: 10g
Tracking force: 2,4g
Output voltage: 1.05mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30‘000Hz
Impedance: 2x 24Ω
Recommended load: 200 - 300Ω
-
